Unit Details

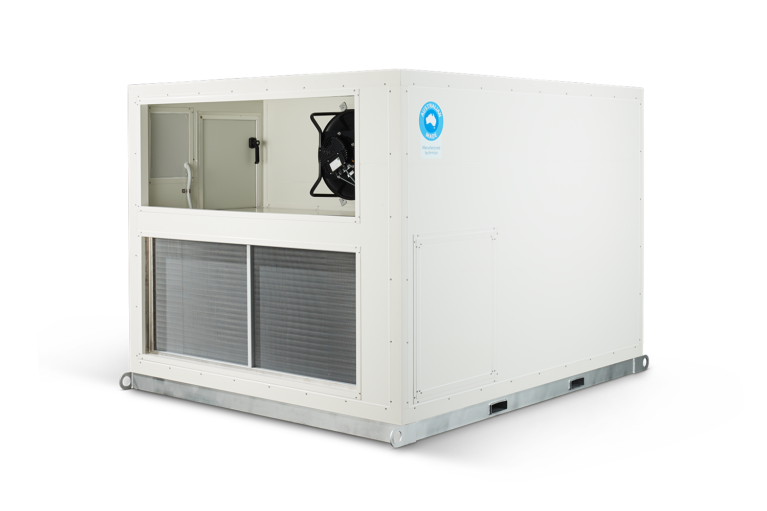

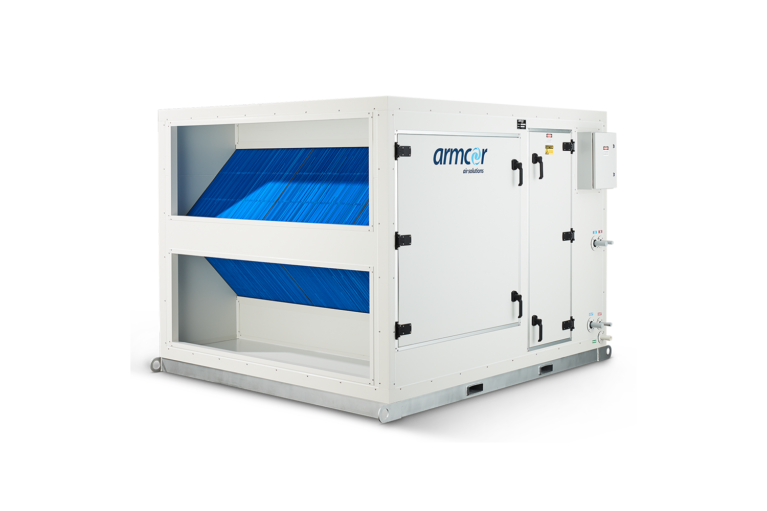

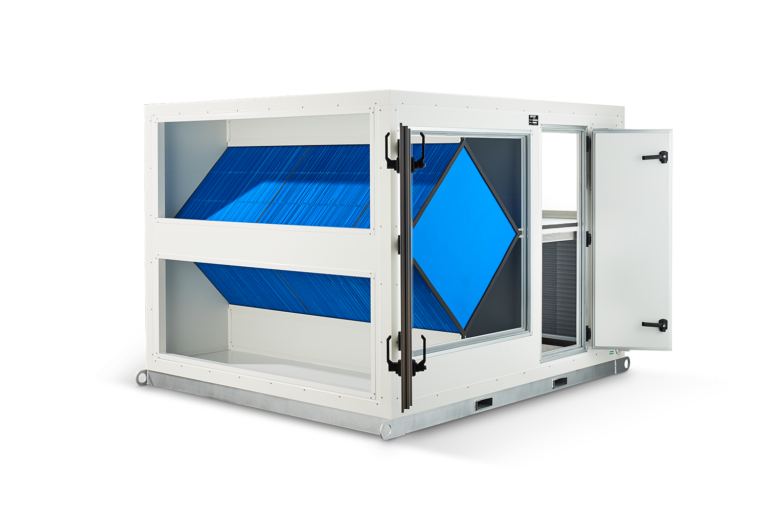

The XEC series combines ERV with an inbuilt chilled water and/or hot water coils to condition the air following the heat recovery process.  The unit configuration suits external rooftop or plant room applications and is available with forward curved centrifugal fans or  energy saving EC Plug Fans and an option of enthalpy or sensible plate heat exchange media. An optional economy system is easily accommodated by increasing the width of the unit to allow bypass for both fresh and exhaust air.

With standard capacities from 400 l/sec to 9,000 l/sec, there are units readily available to suit applications such as:

  • Commercial public activity venues, sporting complexes and gymnasiums
  • Public utility buildings, Police, Ambulance stations
  • Nursing homes, Child care, Education
  • Large occupancy buildings and retail showrooms
  • Professional suites

Options include:

  • Enthalpy or Sensible Media
  • Hot and Chilled Water Coils
  • Economy Cycle
  • Various control options
Disclaimer:
The data and information contained in Armcor Air Solution technical specification sheets are representative of expected performance. They are derived from aggregated specifications of the individual components used in the equipment and not from verified laboratory testing. This should only be used for evaluating your specific application and clients have the sole responsibility of satisfying themselves that the goods or services are suitable for any specific use

Specifications & Downloads

Model No.Model No. Economy CycleTechnical SpecificationPDF Drawing
XEC400P1 Technical Specification PDF Drawing
XEC800P3 Technical Specification PDF Drawing
XEC1200P3 Technical Specification PDF Drawing
XEC1500P3 Technical Specification PDF Drawing
XEC1800P3 Technical Specification PDF Drawing
XEC2400P3 Technical Specification PDF Drawing
XEC3000P3 Technical Specification PDF Drawing
XEC3600P3 Technical Specification PDF Drawing
XEC4200P3 Technical Specification PDF Drawing
XEC4800P3 Technical Specification PDF Drawing
XEC5400P3 Technical Specification PDF Drawing
XEC6000P3 Technical Specification PDF Drawing
XEC7500P3 Technical Specification PDF Drawing
XEC9000P3 Technical Specification PDF Drawing
