Unit Details

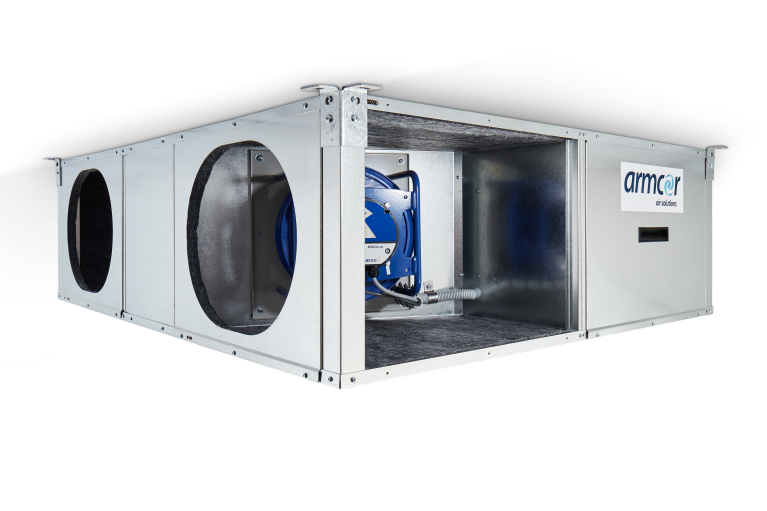

The XCM series is a compact, horizontal low-profile ceiling mount heat recovery unit designed for installation within a roof space.
These ERV units utilize the Xchange plate heat exchanger to recover the energy from the exhaust air into the incoming fresh air, resulting in significant energy savings. Both enthalpy and sensible heat exchange media are available. The option of EC Plug Fans makes this our star achiever in energy savings and controllability.

The Research & Development team at Armcor Air Solutions has radically redesigned their XCM range of ERVs, to bring to market not only the most versatile unit available but also an Australian Made leading product

XCHANGE refers to energy exchange, the heart of the unit. COMPACT signifies the low-profile height for horizontal or vertical installation, particularly suited for ceiling or underfloor spaces. The key to success is the MULTIFLOW design thinking, which enables installation with a multitude of duct connection options by simply interchanging the access panel and the duct connection panel.

Suitable for any application where there is a requirement for fresh air such as:

  • Commercial offices, child care and education
  • Apartment bathroom exhaust
  • Residential damp and mould control
  • Public occupancy buildings
  • Professional suites
Disclaimer:
The data and information contained in Armcor Air Solution technical specification sheets are representative of expected performance. They are derived from aggregated specifications of the individual components used in the equipment and not from verified laboratory testing. This should only be used for evaluating your specific application and clients have the sole responsibility of satisfying themselves that the goods or services are suitable for any specific use

Specifications & Downloads

Model No.Model No.Technical SpecificationPDF Drawing
XCM125P1 Technical Specification PDF Drawing
XCM225P1 Technical Specification PDF Drawing
XCM325P1 Technical Specification PDF Drawing
XCM425P1 Technical Specification PDF Drawing
XCM625P1 Technical Specification PDF Drawing
XCM925P3 Technical Specification PDF Drawing
XCM1225P3 Technical Specification PDF Drawing
