Location: Bairnsdale, Victoria 3875
Contractor: J O Miller Group Pty Ltd

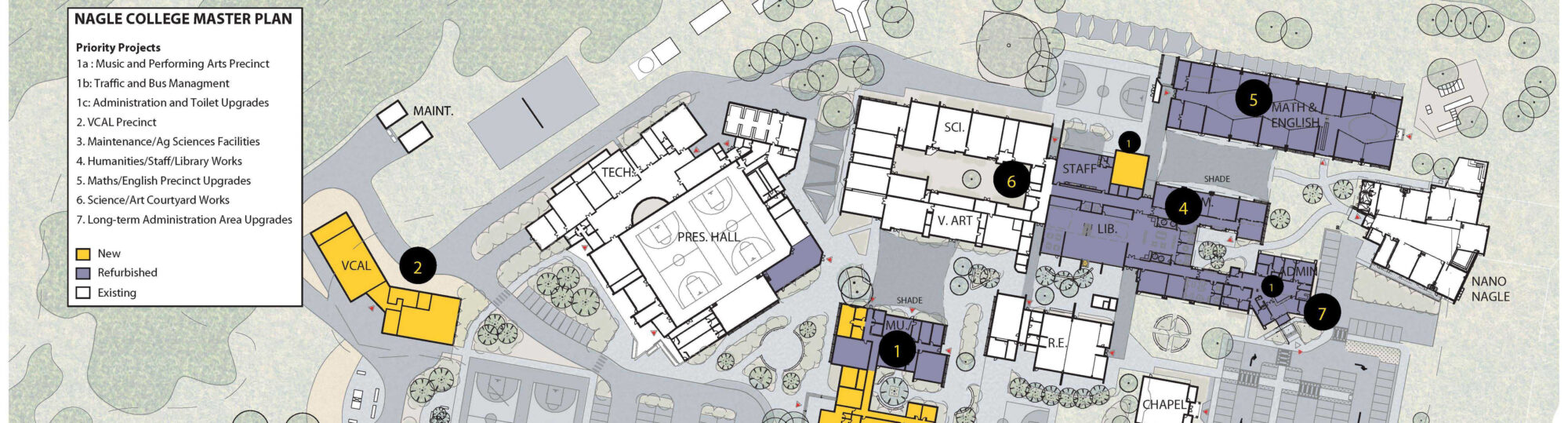

Nagle College is a Catholic secondary school. Nagle College seeks to be an educational community for young women in the Catholic tradition. Nagle College has released the details of their new Master Plan which outlines the projected building works which will be undertaken in seven phases between now and 2029. These new and refurbished buildings will provide more contemporary and functional learning & teaching spaces.

The contractor approached Armcor Air Solutions for the obtaining the solutions for the project specifications.

With its design, engineering and manufacturing  expertise Armcor provided a business solution with 2 of its XCM325P1S and one each of  XCM625P1S and XEC2500P3E. The XCM series is a compact, horizontal low-profile ceiling mount heat recovery unit designed for installation within a roof space. These ERV units utilize the Xchange plate heat exchanger to recover the energy from the exhaust air into the incoming fresh air, resulting in significant energy savings. Both enthalpy and sensible heat exchange media are available. The option of EC Plug Fans makes this our star achiever in energy savings and controllability.

Also, the XEC series combines ERV with an inbuilt chilled water and/or hot water coils to condition the air following the heat recovery process.  The unit configuration suits external rooftop or plant room applications and was provided with energy saving EC Plug Fans and an enthalpy heat exchange media. The XEC2500P3E was manufactured in an economy system which is easily accommodated by increasing the width of the unit to allow bypass for both fresh and exhaust air.

All these units were manufactured, assembled, and delivered in time as per the project requirement.
