ERV - Energy Recovery

XEM External Mount Unit

ERV - Energy Recovery

XEM External Mount Unit

Unit Details

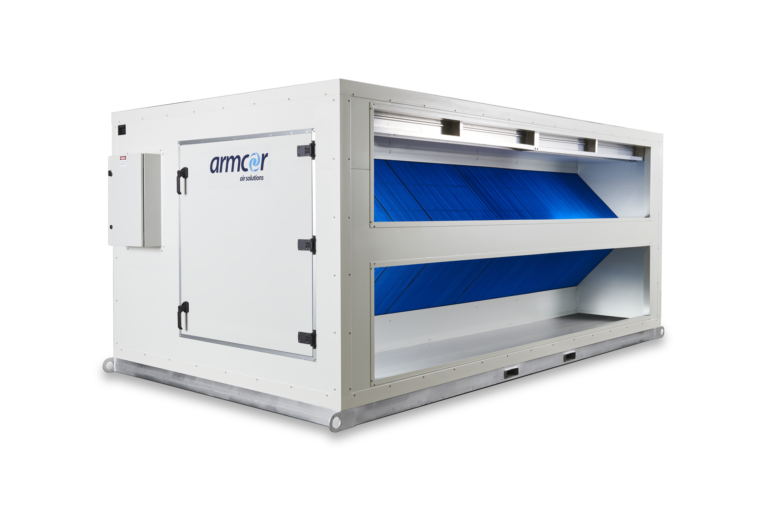

The XEM series is our standard heat recovery ERV solution for rooftop,  ground level or plant room applications.  These units utilize the Xchange plate heat exchanger to recover the energy from the exhaust air and transfer it to the incoming fresh air, resulting in significant energy savings. Both enthalpy and sensible heat exchange media are available.  The XEM Series is particularly suited to an optional economy bypass system.

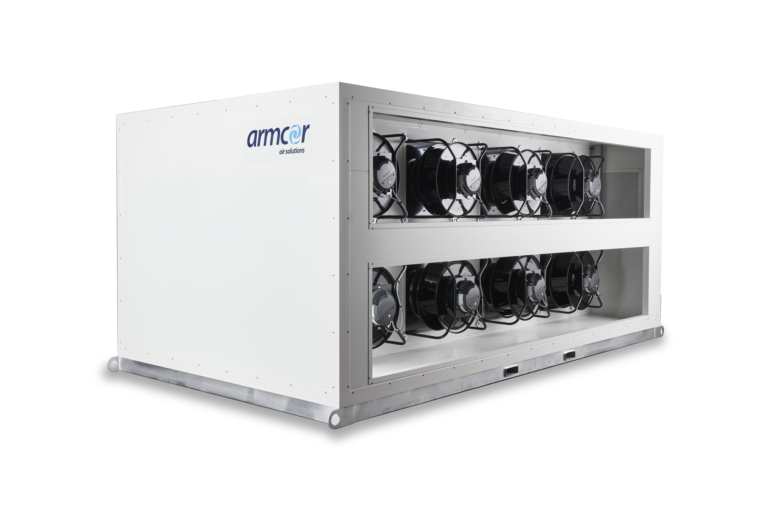

EC Plug fans are standard on all models, providing variable speed control and optimal energy efficiency.

Larger equipment can be specifically designed for applications up to 18,000 L/sec. Units are readily available to suit applications such as:

  • Commercial public activity venues, sporting complexes and gymnasiums
  • Public utility buildings, Police, Ambulance stations
  • Nursing homes, Child care, Education
  • Large occupancy buildings and retail showrooms
  • Professional suites

Options include:

  • Enthalpy or Sensible Media
  • Hot and Chilled Water Coils
  • Economy Cycle
  • Various control options
Disclaimer:
The data and information contained in Armcor Air Solution technical specification sheets are representative of expected performance. They are derived from aggregated specifications of the individual components used in the equipment and not from verified laboratory testing. This should only be used for evaluating your specific application and clients have the sole responsibility of satisfying themselves that the goods or services are suitable for any specific use

Specifications & Downloads

Model No. EC Plug FanModel No. Centrifigal FanTechnical SpecificationPDF Drawing
XEM400P1 Technical Specification PDF Drawing
XEM800P3 Technical Specification PDF Drawing
XEM1200P3 Technical Specification PDF Drawing
XEM1500P3 Technical Specification PDF Drawing
XEM1800P3 Technical Specification PDF Drawing
XEM2400P3 Technical Specification PDF Drawing
XEM3000P3 Technical Specification PDF Drawing
XEM3600P3 Technical Specification PDF Drawing
XEM4200P3 Technical Specification PDF Drawing
XEM4800P3 Technical Specification PDF Drawing
XEM5400P3 Technical Specification PDF Drawing
XEM6000P3 Technical Specification PDF Drawing
XEM7500P3 Technical Specification PDF Drawing
XEM9000P3 Technical Specification PDF Drawing
