Unit Details

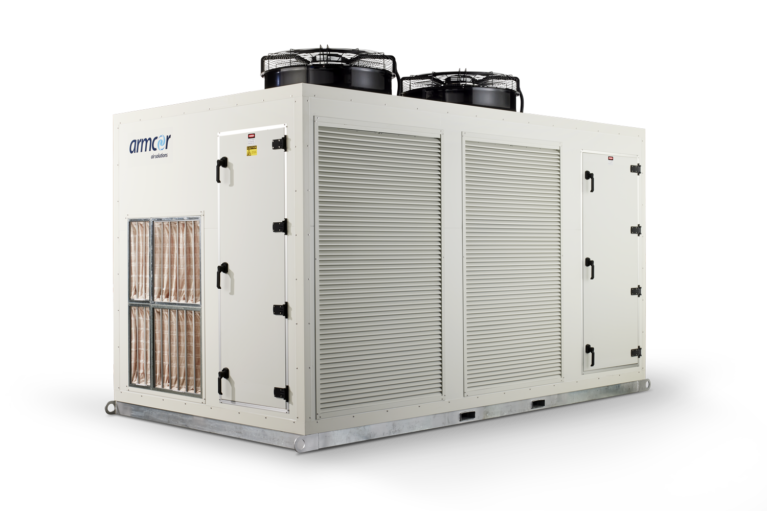

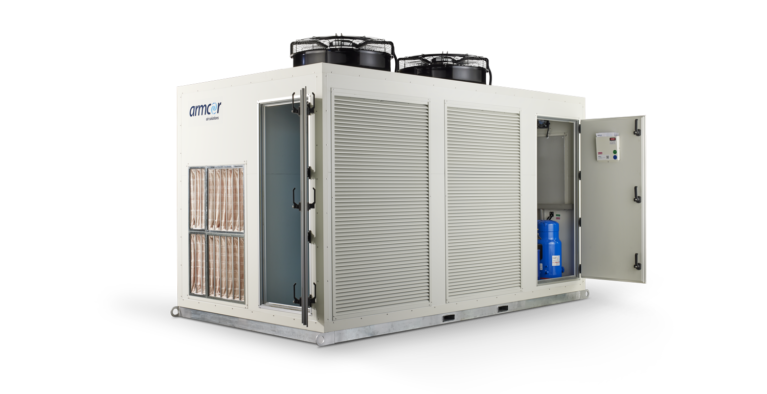

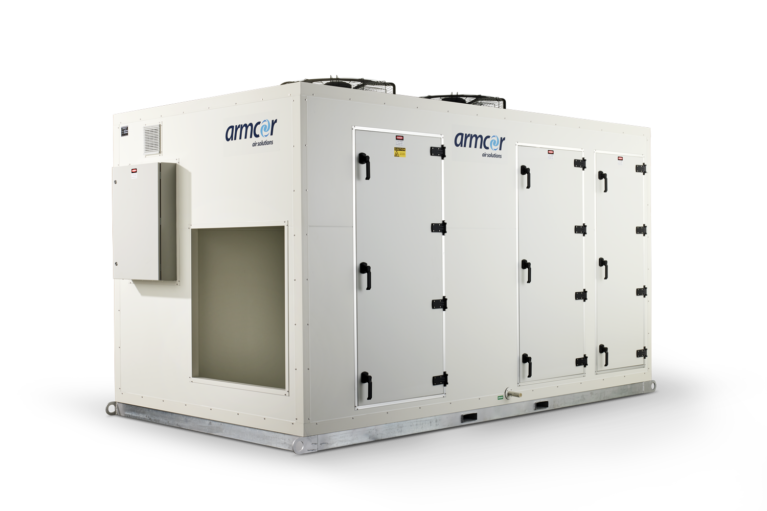

The HTC series are packaged Humidity and Temperature Control units designed to provide a practical solution for temperature and humidity control where there is a significant requirement for fresh air. The reduction of moisture content is achieved through the careful design of compressor capacity, coil capacity and air flow to cater for the specific ambient conditions. Where standard airconditioning systems cope well with recirculated return air temperatures up to 24oC, the HTC can be designed to cope with much higher ‘air on’ conditions.

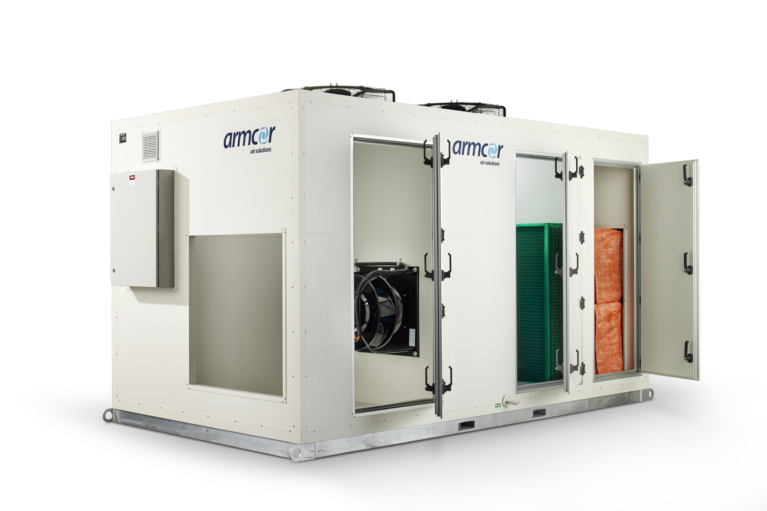

Humidity control involves reducing the temperature below dew point, which is usually too cold for supply air temperatures. To offset this the HTC incorporates a condenser reheat coil so that the outlet air can be tempered after the humidity control process. Standard equipment configuration includes EC plug fans, stainless steel drain tray and associated controls.
With nominal capacities of 500 – 5,000 l/sec, and cooling capacities of 30kW – 200kW, the HTC are project specific, designed for the appropriate climatic conditions.

Applications
HTC units are ideally suited to applications where both humidity and temperature control is essential such as:
• Living quarters and reception/community centres in hot and humid locations
• Libraries, surgeries, laboratories and archive storage.
• Process manufacturing

Specifications & Downloads

Model No.Model No.Technical SpecificationPDF Drawing
HTC500-30P3HTC500-50P3
HTC1500-50P3HTC1500-80P3
HTC2500-80P3HTC2500-100P3
HTC3500-100P3HTC3500-150P3
HTC5000-150P3HTC5000-200P3
