Unit Details

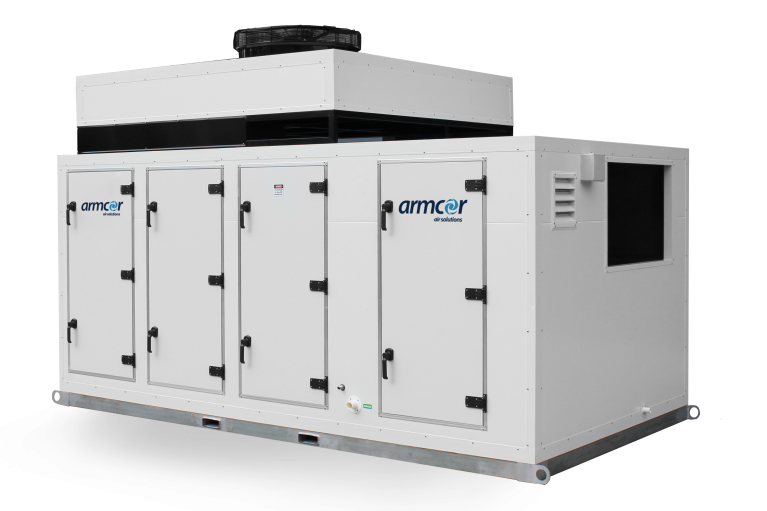

The DHP series are packaged dehumidification units designed to provide an economical and practical solution for humidity control.

Reduction in moisture content is achieved by a combination of a plate heat exchanger and a packaged air conditioning system.

The solution is achieved through a 3-stage process where the air is cooled and dehumidified through the sensible heat exchanger; further cooled and dehumidified through the cooling coil; then passing back through the opposite airflow path of the sensible heat exchange media to be reheated to the required supply air setpoint temperature. The standard equipment configuration includes EC plug fans, sensible heat-exchange media, stainless steel drain tray, and associated controls.

With nominal capacities of 500 – 6,000 l/sec, DHP units are ideally suited to applications where humidity control is essential such as:

  • Data Centre pressurisation
  • Libraries, Archive Storage and Public Buildings, Surgery and Laboratories
  • Apartment Lobby Ventilation
  • Applications where tempered fresh air is required in hot and humid locations.

Specifications & Downloads

Model No. Model No. Technical Specification PDF Drawing
DHP500P3 Technical Specification
DHP900P3 Technical Specification
DHP1200P3 Technical Specification
DHP1700P3 Technical Specification
DHP2000P3 Technical Specification
DHP2500P3 Technical Specification
DHP3500P3 Technical Specification
DHP4500P3 Technical Specification
DHP5000P3 Technical Specification
