Unit Details

AIR HANDLING UNIT DETAILS

Armcor are a leading air handling unit manufacturer in Australia. An air handling unit (AHU) is used to condition and circulate air as part of a heating, ventilating and air-conditioning (HVAC) system. The air entering an AHU usually passes through an air filter, across the heating/cooling coil and then the supply air fan, providing the correct volume and pressure or conditioned air to the ductwork system.

Air handling units (AHU) are used to condition and circulate air as part of a heating, ventilating and air-conditioning (HVAC) system. The air entering an AHU passes through air filters and across the heating/cooling coil. Then the supply air fan, provides the correct volume and pressure of conditioned air to the ductwork system.
AHUs can incorporate a hot water coil, a chilled water coil, a DX coil refrigerant coil or a combination of these. Condensate drains are provided with the AHUs to capture the condensation formed through the cooling process. Specific controls are needed to turn on and off AHUs and these are often integrated with Building Management Systems (BMS).

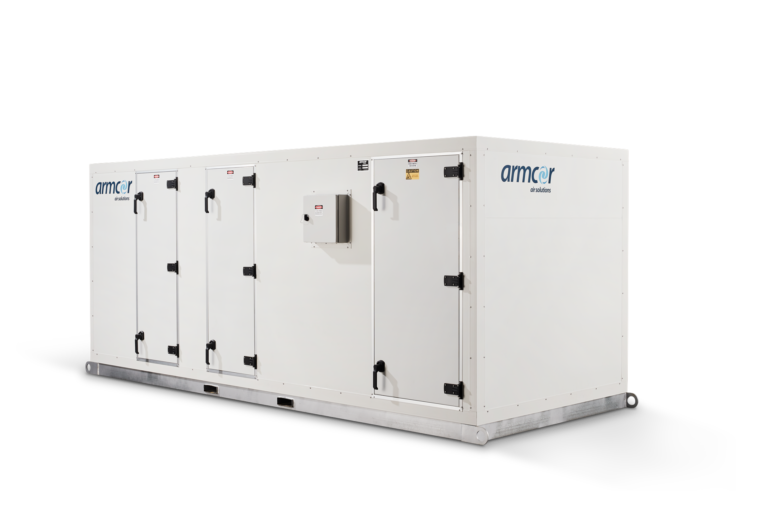

The Armcor AHU design suits rooftop or plant room applications and are fully factory assembled and internally wired, and fitted with large access doors allowing for service, cleaning and maintenance.

Customisable options for the AHU

Armcor Air Solutions offer a variety of options with our AHU range. Our standard range caters for capacities of 500-25,000 l/sec. The additional options include:

Options include:

  • Hot water, Chilled water or DX coils
  • Air filters
  • Economy cycle dampers

For more information on the different options and specifications of Armcor’s air handling units, take a look at our specifications table or download our above guides. Alternatively, if you would like to speak to one of our expert team members, you can contact us directly by filling out our online enquiry form or give us a call on 03 8301 9200 and we’d be happy to assist you in finding the right solution.

Specifications & Downloads

Model No.Technical SpecificationPDF Drawing
AHU500P1 Technical Specification PDF Drawing
AHU900P3 Technical Specification PDF Drawing
AHU1200P3 Technical Specification PDF Drawing
AHU1700P3 Technical Specification PDF Drawing
AHU2000P3 Technical Specification PDF Drawing
AHU2500P3 Technical Specification PDF Drawing
AHU3000P3 Technical Specification PDF Drawing
AHU3500P3 Technical Specification PDF Drawing
AHU4000P3 Technical Specification PDF Drawing
AHU5000P3 Technical Specification PDF Drawing
AHU6000P3 Technical Specification PDF Drawing
AHU7000P3 Technical Specification PDF Drawing
AHU8000P3 Technical Specification PDF Drawing
AHU10000P3 Technical Specification PDF Drawing
AHU12000P3 Technical Specification PDF Drawing
AHU14000P3 Technical Specification PDF Drawing
AHU16000P3 Technical Specification PDF Drawing
AHU18000P3 Technical Specification PDF Drawing
AHU20000P3 Technical Specification PDF Drawing
AHU25000P3 Technical Specification PDF Drawing
